Hydrophone
Cooperating with Dr. David Rothenberg and some manufacturer in China, we developed a kind of hydrophone with the brand name AquaBeat.

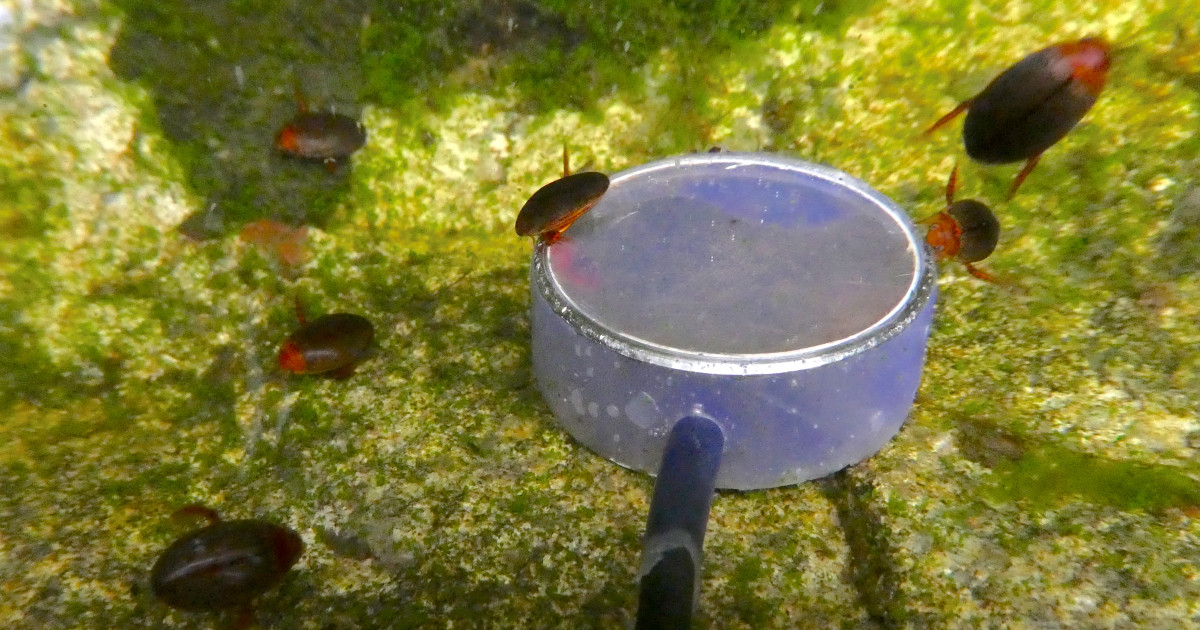

AquaBeat in Pond

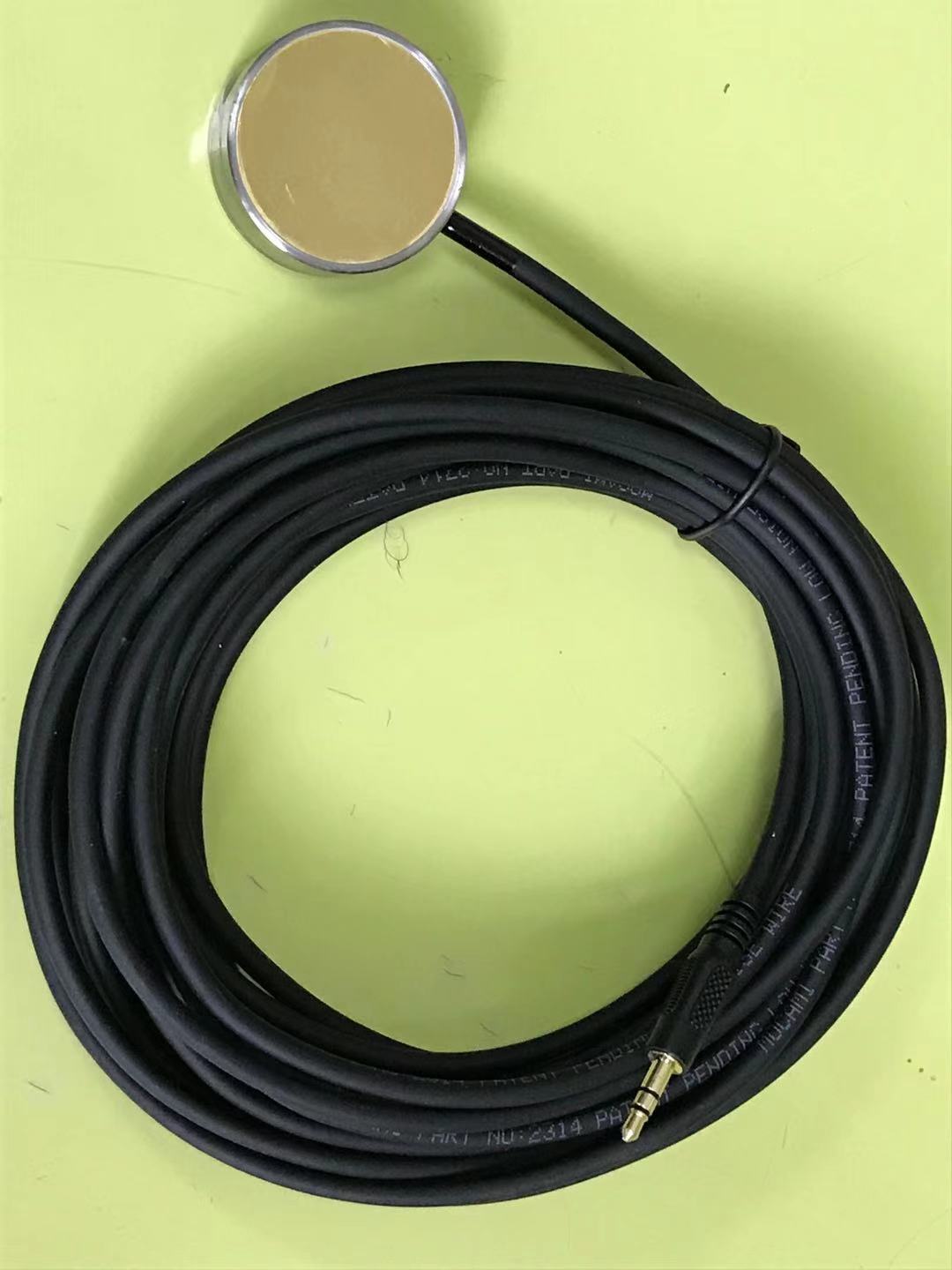

AquaBeat
AquaBeat Pond Sound Recordings
Specifications：
- Working Current: ≦ 5mA
- Working Voltage: 1.5 - 4.5V
- Output Impedance: ≦2200 Ω
- High Sensitivity: -30dB+-4dB
- Working Frequency: 10Hz - 20KHz
- Working Temperature: -20 0C to 60 0C
- Directions: all directions
- Working Depth: 6.00 meter
- Sound Channels: single
- Working Environment: fresh or sea water, air
- Cable Length: 7 +- 0.2 meter
- Cable Diameter: 3.9 +- 0.2 mm
- Net Weight: 0.215 kg
- Housing: Stainless Steel
- Housing Diameter: 40 +- 1 mm
- Housing Thickness: 16 +- 0.5 mm
- Housing Covering: Silicone Resin, water-proof
*Plug-in Power: recording device with 3.5 plug-in recorder, laptop, recording pen, etc.
Book: SECRET SOUNDS OF PONDS
About the Book
In Secret Sounds of Ponds, environmental musician and philosopher David Rothenberg tosses a microphone into a pond and we read (and hear) about an entirely new realm: the unexpected and stirring rhythms of some of the smallest and loudest creatures on Earth. Recording the songs of the animals and plants inhabiting each pond reveals a different perspective than what we meet in our human society. Rothenberg makes this music real though his engaging prose and conversations with environmentalists ranging from Werner Herzog to Peter Gabriel to ecologists specializing in these unique waterscapes. Each pond episode brings the reader closer to a new understanding of the non-human world that we share.
Purchasing:
To purchase the hydrophone, please contact Dr. David Rothenberg at rothenbird@gmail.com
Telephone：（0579）82387161
e-mail: sunpride@hotmail.com
